tapSTRAIL05
)
)

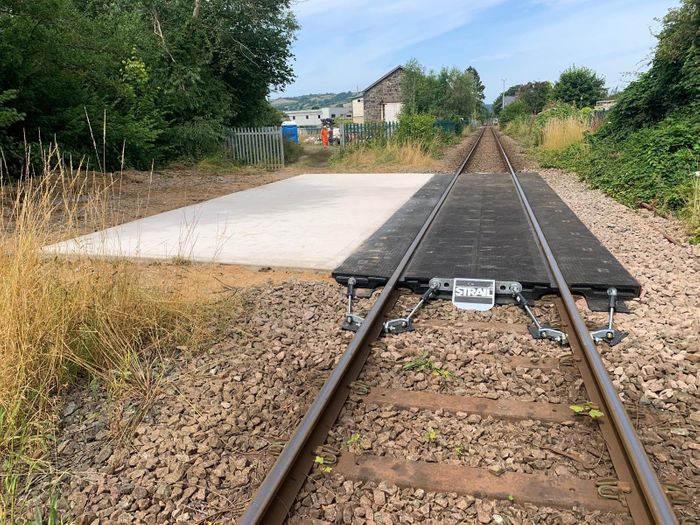

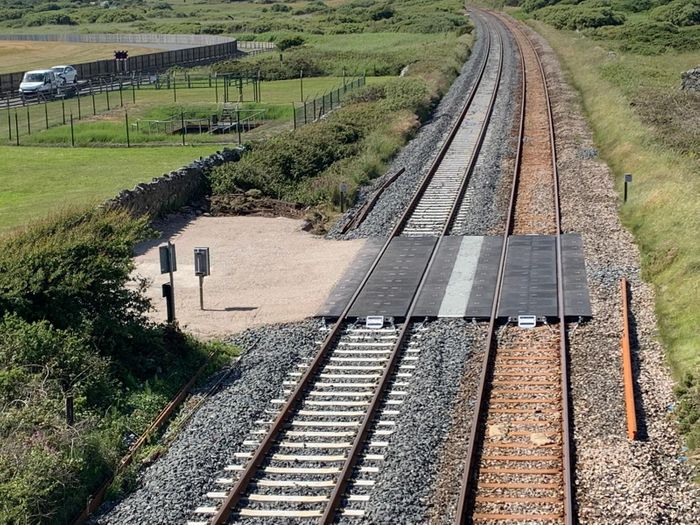

tapSTRAIL05 medium duty, rubber level crossing decking units are a proven solution for farm and accommodation crossings and for road rail vehicle access level crossings.
Patented corundum surface structure enhances traction under wet conditions. Firm stability is achieved with tight interlocking and by the panel weight. tapSTRAIL05 will fit a great variety of rail and sleeper configurations.
+ Fast, easy installation.
+ Sleeper spacing independent. Sleeper spacing as found on site.
+ Option of inner panels cut in to two halves means that the panels can be manually installed or removed without the use of mechanical lifting machinery.
+ One panel to fits almost all sleeper types used with flat bottom rails (BS113/110A and CEN60). System is adapted for each site using either rubber or timber packing. Can be used with one sleeper type at one site and then moved to another site with different sleepers if required.
+ Can be specially adapted to fit Bullhead 95R rails.
+ High degree of skid resistance, even under wet road conditions, due to special anti-skid surface. Introduced in 1996, the surface consists of a lozenge profile with imbedded mineral grit.
+ Highly wear resistant surface due to embedded mineral grit.
+ Gap free, anti vandal, lock tight tie rod system.
+ Virtually maintenance free. Fit and forget.
+ No more track circuit failures due to excellent electrical insulation properties of the rubber panels.
+ tapSTRAIL05 developed from more than 25 years of innovation of the STRAIL family of products.
+ Noise and vibration reduction due to shock absorbing properties of rubber.
+ tapSTRAIL05 is manufactured from recycled materials.
