09 Jun 2025

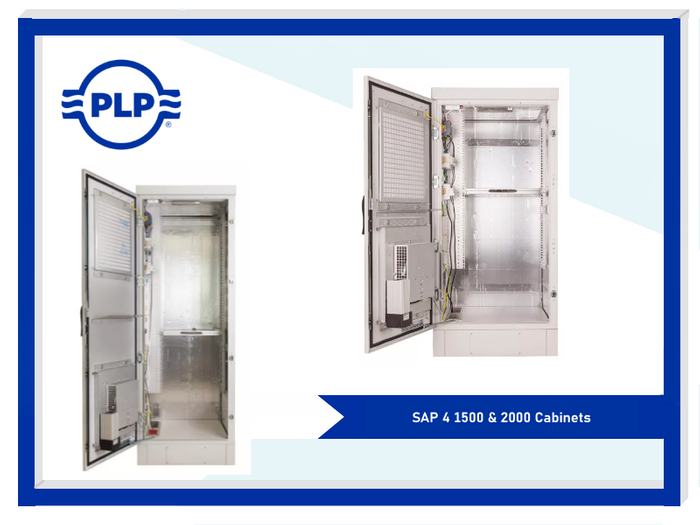

SAP 4 1500 - External Cabinet
)
| Inputs / Outputs (quantity × range) | 16× 13–23 mm, 18× 5–12 mm |
| Grommets (type and number of used grommets) | BST system |
| Ingress Protection | IP54 |
| Material | painted steel sheet |
| Color | light gray RAL 7035 |
| Dimensions (H × W × D) | 1,500 × 700 × 700 mm / 2,000 × 700 × 700 mm |
| Weight | 139 / 165 kg |
| Environment | outdoor |
