09 Jun 2025

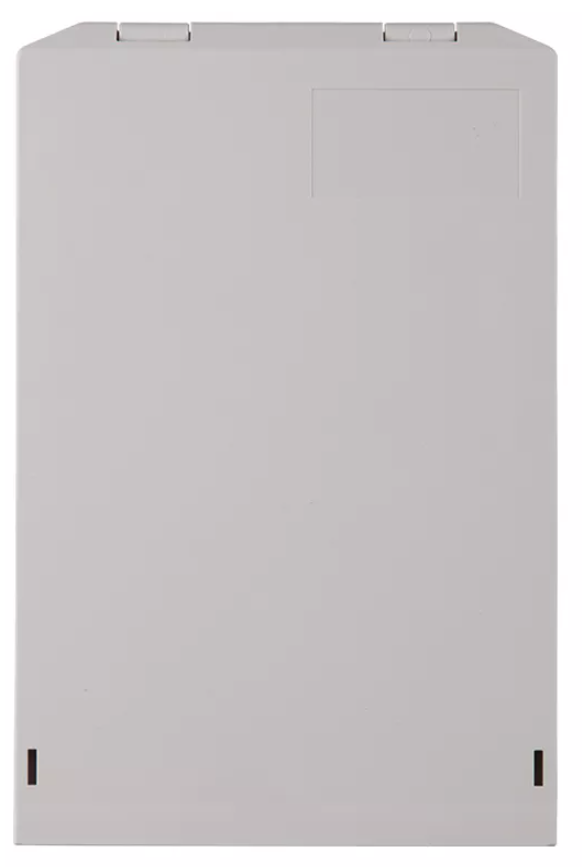

ORM 5
)
| Inputs / Outputs (quantity × range) | 4× 3–14 mm / 8× 1–3 mm, 1× 3–14 mm |
| Grommets (type and number of used grommets) | 4× stepped grommet / 4× splittable grommet, 1× stepped grommet |
| Ingress Protection | IP55 |
| Impact Protection | IK10 |
| UV Resistance | yes |
| Temperature Range | –40 °C / +70 °C |
| Material | PC / ABS |
| Color | light gray RAL 7035 |
| Dimensions (H × W × D) | 235 × 156 × 45 mm |
| Weight | 0.5 kg |
| Environment | indoor outdoor |
| Number of Splices | 1–12 |
| Number of Connectors | 1–12 |
| Connector Type | LC SC |
