09 Jun 2025

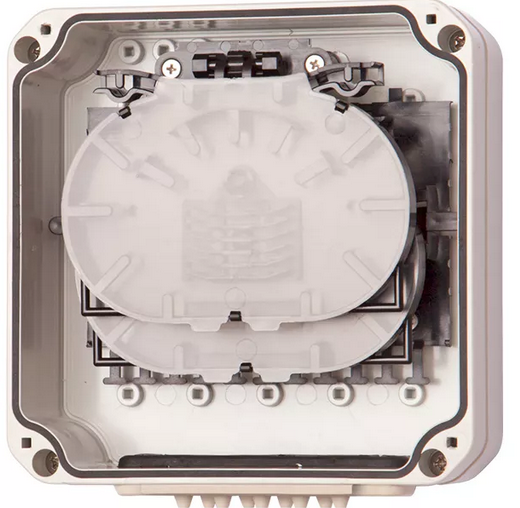

ORM 3 SH 24
)
| Inputs / Outputs (quantity × range) | 2× 3–9 mm, 9× 1.8–5 mm |
| Grommets (type and number of used grommets) | 1× express port I. |
| Ingress Protection | IP54 |
| Impact Protection | IK10 |
| UV Resistance | yes |
| Flammability Degree | V0 |
| Material | PC / ABS |
| Color | light gray RAL 7035 |
| Dimensions (H × W × D) | 136 × 136 × 64 mm |
| Weight | 0.5 kg |
| Environment | indoor outdoor |
| Number of Splices | 1–12 13–24 |
| Number of Connectors | only splicing |
