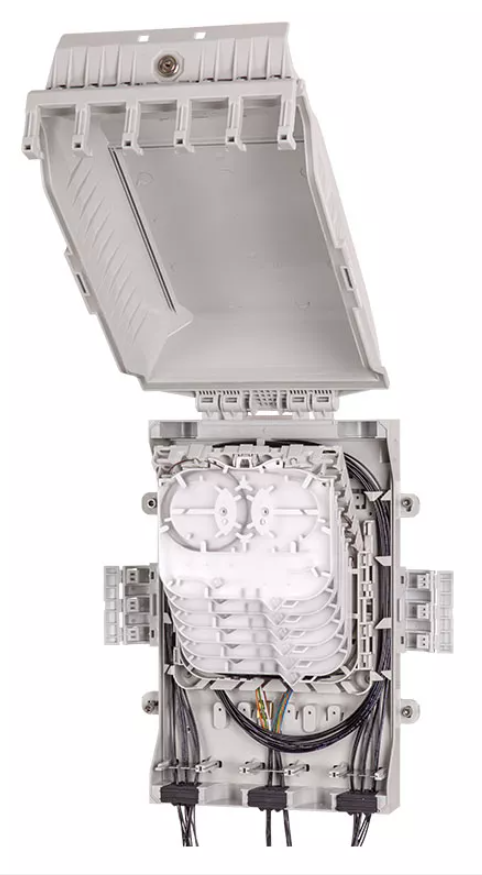

MDB M
)
| Inputs / Outputs (quantity × range) | For using outdoors: 5× 1.8–13 mm, 2× 10–14 mm or optional insert For using indoors: 7× 1.8–13 mm (follow the Configurator in the Datasheet – Section 1 – Grommets Selection) |
| Grommets (type and number of used grommets) | For using outdoors: Grommets System – 5 pcs, PG 16 – 2 pcs For using indoors: Grommets System – 7 pcs |
| Ingress Protection | IP65 |
| Impact Protection | IK10 |
| Flammability Degree | V0 |
| Material | PC / ASA |
| Color | light gray RAL 7035 |
| Dimensions (H × W × D) | 427 × 290 × 132 mm |
| Weight | 2.6 kg |
| Environment | indoor outdoor |
| Number of Splices | 1–12 13–24 25–48 49–72 73–96 97–144 |
| Number of Connectors | 1–12 13–24 25–48 49–72 73–96 |
| Connector Type | LC SC |
