LEMUR-AG15
)
)
)
)
LEMUR-AG15
Low Emissivity Magnetic U Reflector (Aluminium Glass) - Version 15
LEMUR-AG15, a novel technology originally developed to solve Network Rails challenges of overheating assets during summer periods. This fully passive system provides a highly efficient protective skin from the effects of solar gain.
The engineered material has a composite structure manufactured from aluminium and woven glass, backed with a structural adhesive tape. The aluminium outer laminate diffuses and reflects transverse electromagnetic waves. The glass-e inner woven textiles provide high insulating properties, which prevents thermal conduction. The weave pattern in the glass-e produces a dimpled surface when the aluminium is laminated creating a diffused surface by design.
Combining the properties of these materials results in LEMUR-AG15 blocking approximately 98% of solar gain, significantly reducing the heating effect of direct sunlight on trackside equipment.

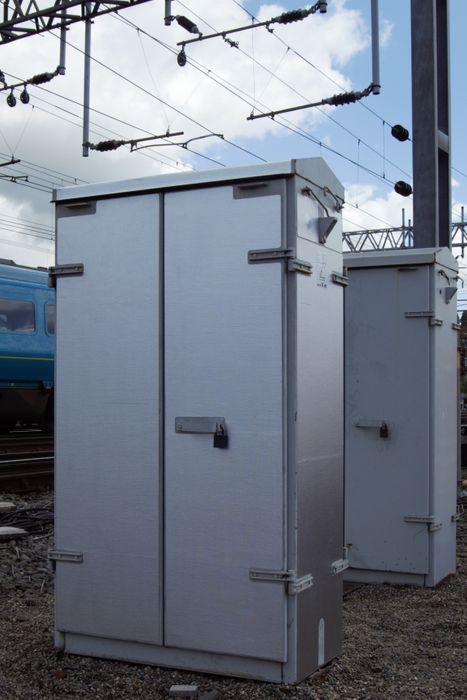

Patterns can be produced for enclosures of virtually any size, including impedance bonds, TI21 tuning units, points machines, loc’s, and REBs. Installation is simple and efficient, the peel-and-stick application can be completed in minutes, providing immediate protection for the asset.
KEY Features
- Network Rail product acceptance - PA05/07421
- Reflects Transverse Electromagnetic waves from the sun >97%
- < 0.5Kg /m2 - Ultra Light weight solution
- < 0.5mm thick, flexible and formable to any profile
- Simple to cut with either scissors or Stanley knife
- Long service life >20 years
- 100% Recyclable
- Typical installation time 15 minutes (Railway apparatus housing)
- Fully passive solution requiring no power source
- Resistant to graffiti and easily cleaned
- Requires no specialist tools or training for installation
- No requirement to drill the housing.
- Nonporous, resistant to water, chemicals, oils, mould & algae
- No requirement to de-energise the asset or open doors
- No requirement for plant & civils
- Specially formulated Hi-Tac weatherproof structural tape backing
- Can be installed as part of scheduled maintenance tasks or within a factory environment prior to asset installation and commissioning.
