Go2 Quadruped Robot

Belvoir Rail Stand: M4
Go2 Quadruped Robot
Go2 Quadruped Robot
Go2 Quadruped Robot

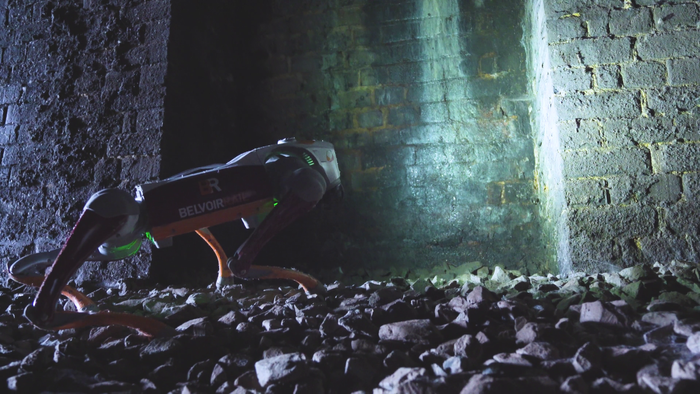

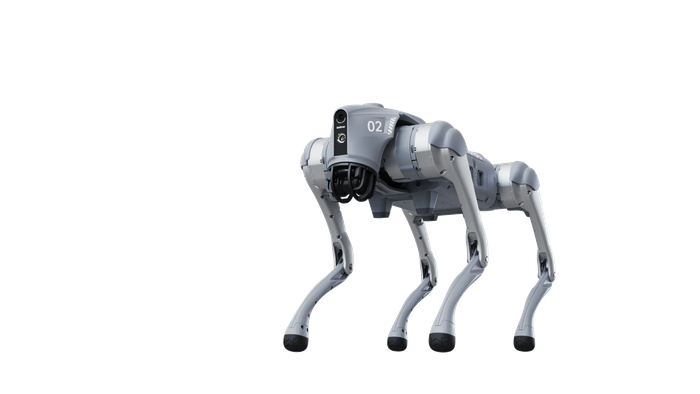

The Go2 is a compact, lightweight quadruped robot designed for rail inspections and confined-area deployment. Agile, intelligent, and highly mobile, it is ideal for navigating tight or restricted environments such as tunnels, culverts, underpasses, and narrow trackside paths.

Key Features:

  • Compact & agile design
    – Lightweight and easy to transport
    – Easily deployable in tight spaces, remote areas, or around rail infrastructure

  • Payload capacity:
    – Carries up to 12 kg, suitable for sensor kits, cameras, or other essential inspection equipment

  • Terrain handling:
    – Climbs slopes up to 40°, allowing it to operate on embankments, platforms, and uneven terrain

  • Advanced navigation & sensing:
    – Equipped with a wide-angle 4D LIDAR for precision mapping and automated navigation
    – Integrated front-facing ultra-wide-angle camera delivers high clarity visual feedback

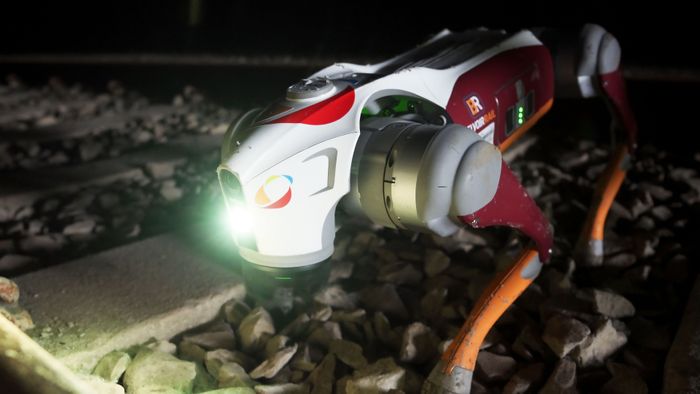

    – Built-in front lamp enhances visibility in dark environments such as rail tunnels or culverts

  • Power system:
    – Offers up to 4 hours of battery life, ideal for shorter, localised inspection missions
    – Rechargeable and easy to maintain in the field

  • Stability and self-correction:
    Hard to push over, thanks to dynamic balance
    – Can self-right automatically if tipped over

  • Rail-specific applications:
    – Suited for infrastructure inspections, remote visual monitoring, and confined-space exploration
    – Enhances safety and efficiency by reducing the need for manual access to hazardous or difficult-to-reach areas

The Go2 provides a smart, agile solution for rail operators and infrastructure teams seeking a versatile robotic platform that delivers mobility, vision, and autonomy in even the most constrained environments.
