FlyDeck Suspended Access System
)
)
)
)
Innovations that are a key part of the whole system can be summarised as follows:

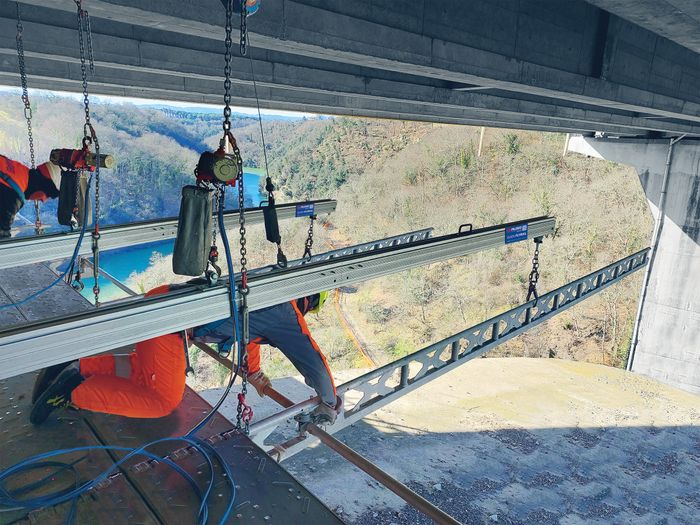

The 25 cm aluminum beam is available in various lengths up to 6 m. It is assembled doubly faster with lower transportation cost and storage space and less operator effort.
Load capacity of the Flydeck platform: 150 kg/sqm with chains or turn buckles every 3 m, up to 300 kg/sqm with chains or turn buckles every 2 m.
There are no limits on width, length or shape since the system is modular and exploits the beams and platforms of any scaffolding brand.
Easy and quick junction of the 25 cm aluminum beams with spigots and exclusive elastic pins that were designed to replace screws and nuts, making the connection fast and simple.
The FLYRAIL guide has been designed to encircle piers or pier-caps and continuing in the subsequent span without using other supports. If the beams are assembled longitudinal, the use of the FLYRAIL guide allows to continue laterally to the pier cap going past it. Optionally, the beams can also be assembled transversely. The operator always works safely above the suspended deck thanks to the Flyrail guide, and with less effort.
Easy-to-assemble safety net that are set up while creating the suspended surface. This is achieved very quickly without creating underbridges. In this manner, the operators are always working in complete safety.
A wide range of accessories for suspension, anchoring, perimeter guardrails, stairways towers are available.
