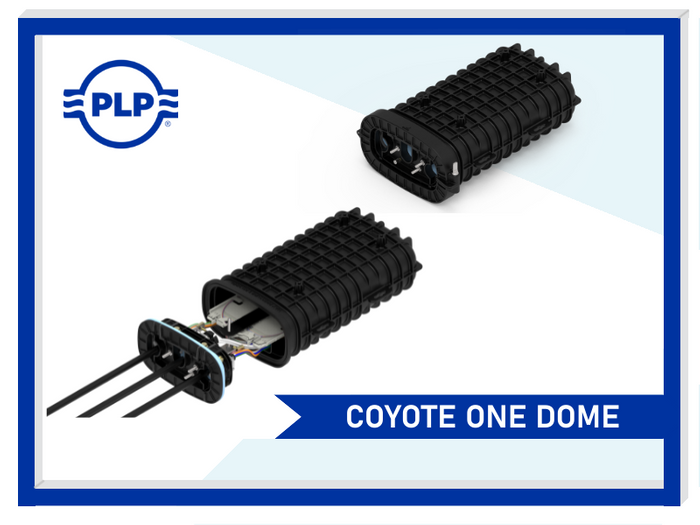

COYOTE ONE DOME

PLP Stand: A5
  • Hinged collar system allows for quick reentry.  No special tools required
  • Integrated air valve for flash testing closure seal
  • Independently tested in accordance to Telcordia GR-771-CORE
  • Direct buried, manhole, aerial or pole/wall mount
  • Flexible grommet sealing system supports a wide range and quantity of flat or round cable profiles.
  • Ideal for railway infrastructure deployment and back-haul networks

Specifications

  • Size: 16" L x 10" W x 5.7" H
  • Max. Splice Capacity: (120) Single Fusion (80809958 Tray), (288) Mass Fusion (LGSTR144 Tray)
  • Configuration: Butt/Expressed Splice
  • Port Quantity: 3
  • Ground Stud Quantity: 3
