Cable Tension System

PENTA ESP Stand: J43
Cable Tension System
Cable Tension System
Cable Tension System

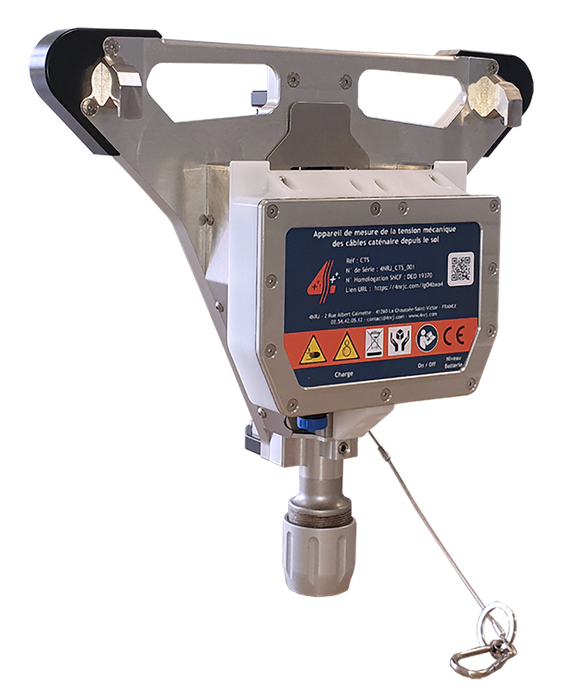

As rail networks continue to expand, so does the demand for dependable, advanced monitoring tools that guarantee the smooth operation of trains and ensure public safety. The CTS Tension Meter is engineered to meet these requirements, offering unmatched precision and ease of use for rail engineers and technicians.

Once fitted to the cable, measurements are delivered via Bluetooth to a mobile phone via the app. With an intuitive digital display and easy-to-use controls, the CTS simplifies the process of monitoring cable tension, reducing time spent on inspections and improving overall efficiency.

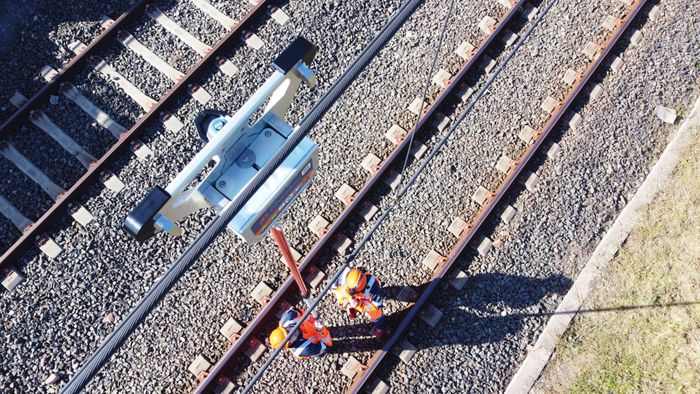

  • Operated from the ground no need for heavy machinery
  • Easy storage and access of recorded data
  • No marks left on the wire after use
  • Hands free operation and Bluetooth connectivity
  • Self-testing control gauge included in the kit
  • Operated and controlled via Android mobile App

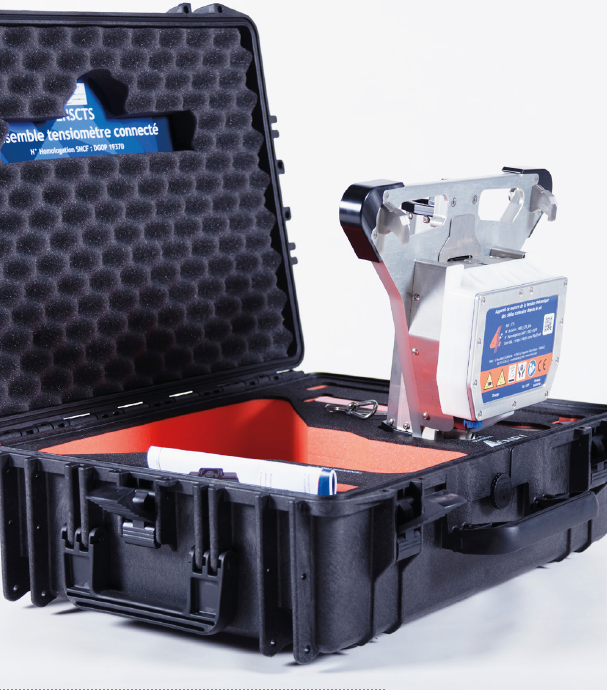

  • Protective case for storage of all units and for transportation



Technical Specification

  • Measurements range : 100 daN à 2500 daN
  • Maximum cable diameter : Ø 21mm
  • Temperatures range : -15°C/+50°C
  • Outside Use : all weather conditions
  • Cycling time (one measure) : around 40 seconds
  • Autonomy : 250 measures
  • Battery recharging time : 2,30 hours
  • Connectivity : Bluetooth : 4.0
  • Tooling Dimensions : 320 x 350 x 150 mm
  • Weight : 4.5 Kg
