ALADIN is designed to provide extra safety level for workers operating near energized equipment (during maintenance, rescue operations, painting, pruning,…) in electrical environment.

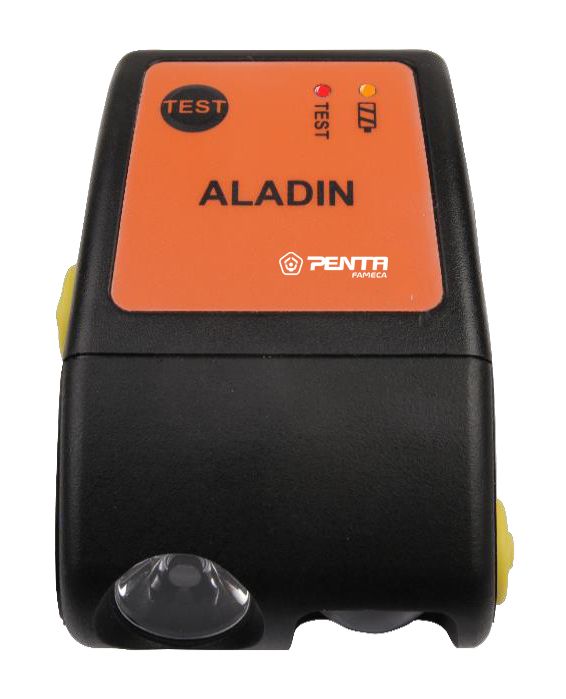

This device combines a head light and a personal voltage alarm.

Example of situation where ALADIN provided an efficient warning.

• Misunderstanding : the operator approach the wrong spot
• Voltage unexpected return : Mistake during an operation on disconnected network.
• Involuntary approach : Quick move in direction of energised area during operation
• Diversion : the operator is diverted by a bad news or urgency and moves toward a high potential energized conductor unconsciously.

In all these situations and many others ALADIN will provide the ultimate WARNING.

Advantage

• Sound alert of voltage proximity which rhythm increases up on the level of electric field detected.
• The “smart mute” is a Dynamic Voltage Detection :
  • It is used to silence the warning sound once at working place, the device is remaining in vigilance and still measuring the electric field.
  • The warning sound will automatically restart in case of increase of the level of detected electric field (closer or sudden presence of voltage)
  • Acts as an additional fencing which can be set at the working place.

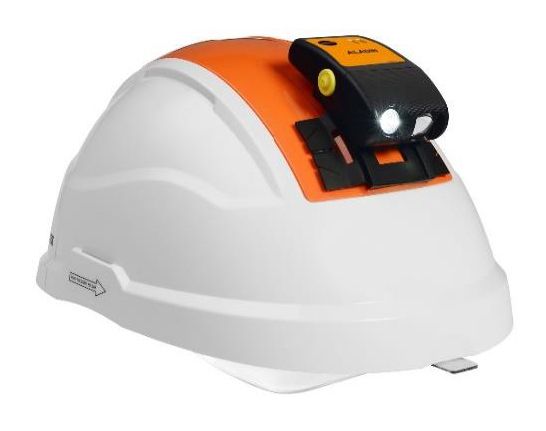

• The device is designed like head light to be fixed on helmets or hard hats by various means. In this position, the device will detect 360°around the operator.
• No influence of the electromagnetic fields.
• 2 types of light are available :
  • 1 light for remote vision (overhead lines, poles, …)
  • 1 light for closer vision (walking trip, working place, …)
  • Specific dual beam light position of the lamp for a better lighting when you move along the tracks and inspect the structures
• Light and compact device.
• Rechargeable by standard micro USB 5 V plug (Complete charge: 3H).

Find us at Stand J43 for more information and a live product demonstration.
