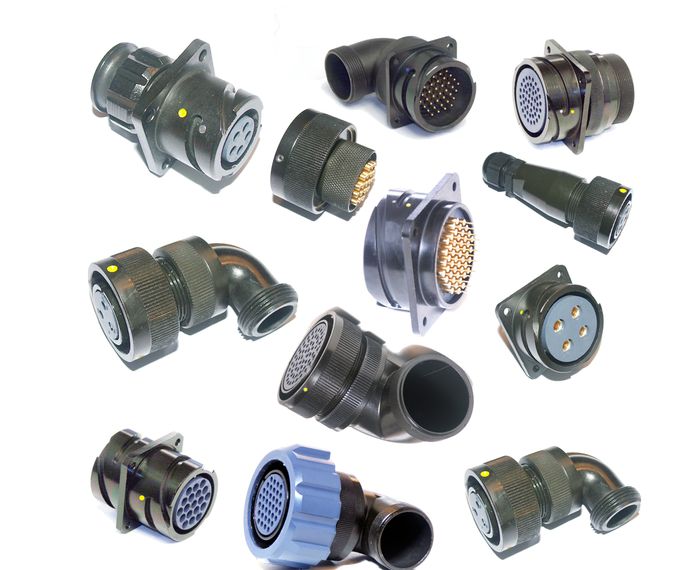

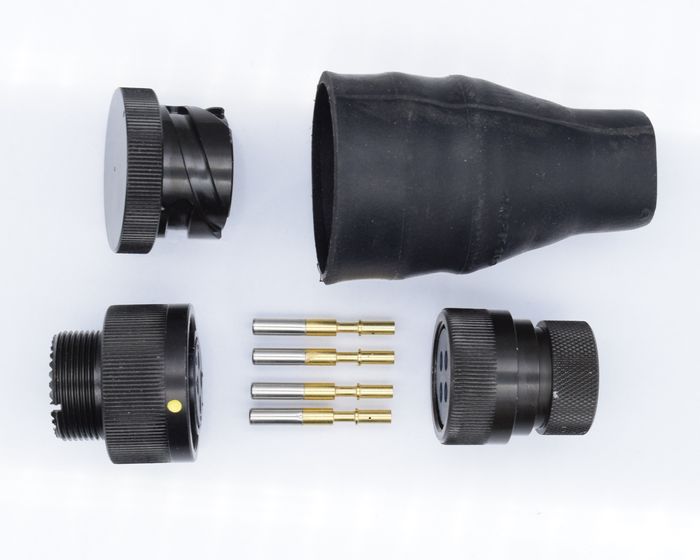

ABCIRH Connectors
)
)
- Full Network Rail Approval for connection of cables to lineside signalling equipment as specified in NR/L2/SIG/30027
- Available as part of Plug & Play kits, see here for more details
- Based on Mil-DTL 5015 and VG95324 specifications
- Reverse bayonet locking provides positive coupling & audible snap when fully mated
- Over 120 contact layouts providing excellent flexibility for power and signalling applications
- Low fire hazard/low smoke halogen free insulators conform to safety specification NFF16-101
- Cadmium free, RoHS compliant black zinc cobalt finish as standard
- Stainless steel pins at critical wear points protect against the effects of severe vibration and repeated mating
- Dynamic seal ring and rear grommet provide effective environmental sealing to IP67
- A grounding ring and large range of rear accessories enable excellent protection against the effects of EMI/RFI
- Entire range held in stock at Aerco, available on same day delivery with no MOQs
